Architecture

​

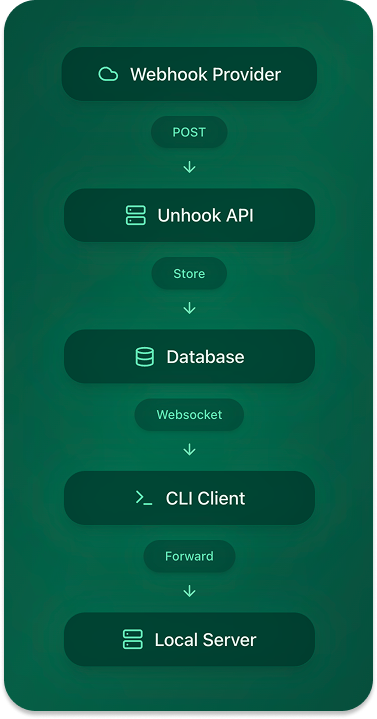

System Overview

​

Data Flow Steps

​

Database Schema

​

Core Entities

​

Users and Organizations

​

Webhooks and Connections

​

Key Tables

​

Users

interface User {
  id: string;
  email: string;
  firstName?: string;
  lastName?: string;
  online: boolean;
  lastLoggedInAt?: Date;
}

​

Organizations

interface Org {
  id: string;
  createdByUserId: string;
  clerkOrgId?: string;
}

​

Webhooks

interface Webhook {
  id: string;
  clientId: string;
  port: number;
  status: 'active' | 'inactive';
  localConnectionStatus: 'connected' | 'disconnected';
  config: WebhookConfig;
  userId: string;
  orgId: string;
}

​

Events

interface Event {
  id: string;
  webhookId: string;
  originalRequest: RequestPayload;
  status: 'pending' | 'processing' | 'completed' | 'failed';
  retryCount: number;
  maxRetries: number;
}

​

Configuration Types

​

Webhook Configuration

interface WebhookConfig {
  storage: {
    storeHeaders: boolean;
    storeRequestBody: boolean;
    storeResponseBody: boolean;
    maxRequestBodySize: number;
    maxResponseBodySize: number;
  };
  headers: {
    allowList?: string[];
    blockList?: string[];
    sensitiveHeaders?: string[];
  };
  requests: {
    allowedMethods?: string[];
    allowedFrom?: string[];
    blockedFrom?: string[];
    maxRequestsPerMinute?: number;
    maxRetries?: number;
  };
}

​

Component Architecture

​

API Server

• Webhook reception and validation
• Event storage and distribution
• Authentication and authorization
• Team management
• Real-time updates

​

CLI Client

• Local webhook connections
• Event subscription
• Request delivery
• Health monitoring
• Debug logging

​

Dashboard

• Real-time event monitoring
• Team management
• Configuration controls
• Analytics and debugging
• Request/response inspection

​

Security Model

1. API Authentication
   • API keys for webhook endpoints
   • JWT tokens for dashboard access
   • Role-based access control
2. Data Privacy
   • Configurable header filtering
   • Request/response body size limits
   • Sensitive data redaction
3. Team Access
   • Organization-based isolation
   • Member role management
   • Shared webhook endpoints

​

Scaling Considerations

1. Database
   • Real-time notification system
   • Event archival strategy
   • Connection pooling
2. API Layer
   • Request rate limiting
   • Load balancing
   • Regional distribution
3. Event Processing
   • Retry mechanisms
   • Failure handling
   • Queue management

​

Development Setup

1. Database

# Start Postgres
docker compose up db

2. API Server

# Start API server
npm run dev:api

3. CLI Development

# Build and run CLI
npm run dev:cli

​

Best Practices

1. Event Handling
   • Implement proper retry logic
   • Handle timeouts gracefully
   • Log relevant debugging info
2. Security
   • Rotate API keys regularly
   • Monitor failed attempts
   • Review access logs
3. Team Workflow
   • Use meaningful client IDs
   • Configure appropriate timeouts
   • Set up health checks
